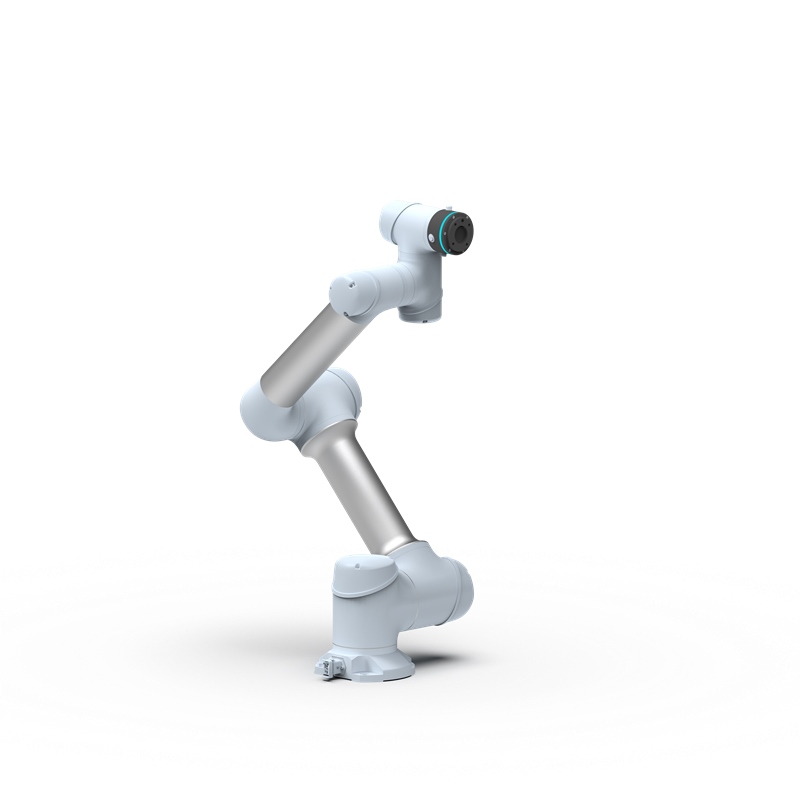

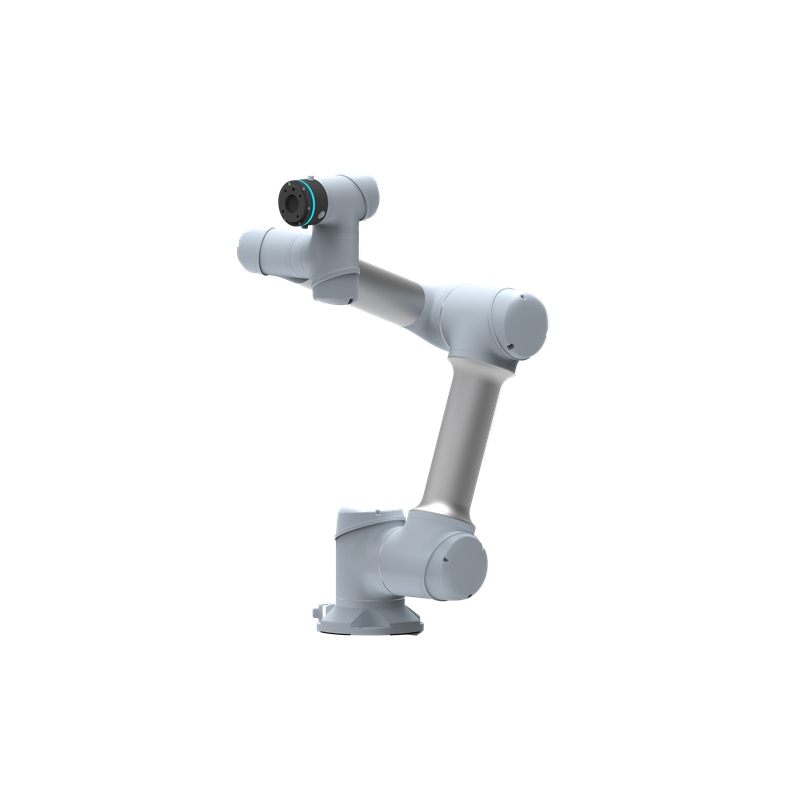

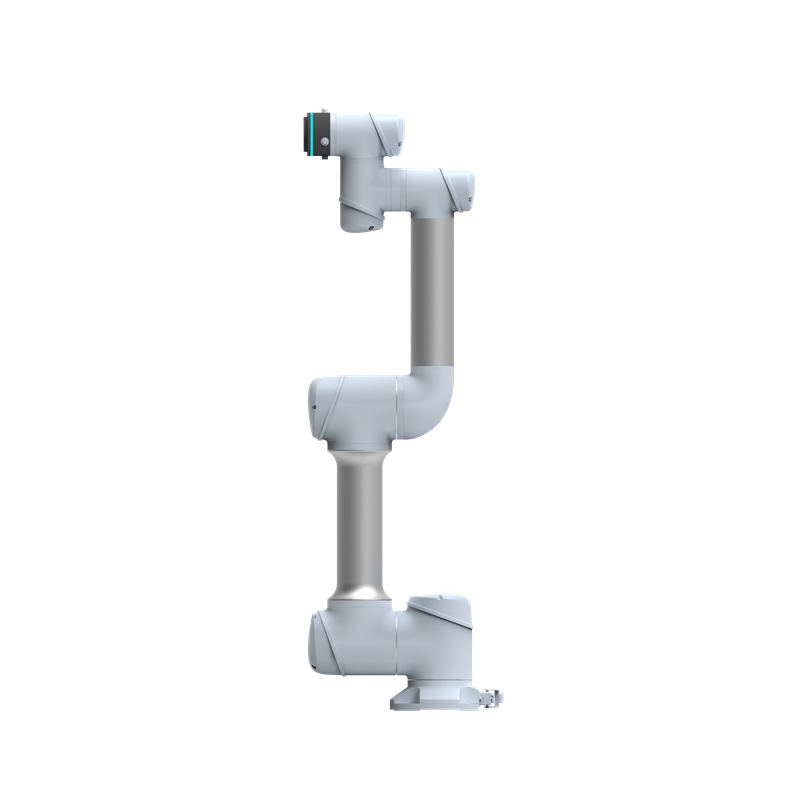

GCR5-910
Max Payload 5 KG | Reach 917 mm
A cost-effective new generation of versatile collaborative robots, featuring lightweight design, quick deployment, easy operation, safety, and energy efficiency, is an ideal choice for achieving high-efficiency and low-cost operations in factories. The product is lightweight, occupies minimal space, and is suitable for industries such as 3C (Computer, Communication, and Consumer Electronics) and automotive.
| Max Payload | 5kg |
| Max TCP Speed | 3.6m/s |
| Max Straight-line speed | 1.5m/s |
| Reach | 917mm |
| Repeatability | ± 0.02mm |
| IP class | IP54/IP65 |
| Communication | Tcp/Ip、Modbus/Tcp、Profinet、Ethernet/Ip |
| Degree of Freedom | 6 | |
| Joint | Joint | Max Speed |
| J6 | ±360° | 225°/s |
| J5 | ±360° | 225°/s |
| J4 | ±360° | 225°/s |
| J3 | ±360° | 225°/s |
| J2 | ±360° | 225°/s |
| J1 | ±360° | 225°/s |
| Tool Interface | GB/T 14468.1-50-4-M6(eqv ISO 9409-1) | |
| End Joint I/O | 2 Dig I/O,24V,0.6A | |
| Power Supply | 100-240VAC 47-63Hz 10A | |
| Power Consumption | Typical Power Consumption 200W | |
| Installation | Installed in any Direction | |
| Ambient Temperature Range | -10°C-50°C | |
| Storage Temperature Range | -40°C-55°C | |
| Robot Dimensions | 1100x330x200mm | |
| Robot Package Size | 698x588x450mm | |
| Net/Gross Weight | 22kg/30kg | |
1.Safety
With 16 TU V certified safety functions such as collision detection, force and power monitoring, which enables Human Robot collaboration
2.Smart
Multiple scenario software packages added (welding, palleting, etc.)
A variety of external interface support (DI, DO, AI/ O, etc.)
Support cloud robot data monitoring, remote OTA upgrade
Supports one -click deployment of multiple de vices and remote backup of data
3.Wide Application
2D/3D visual depth compatibility;
Power control and other ecological support perfect, support
multi-application development
4.Easy Maintenance
Easier-to-ues：With Traction Teach Programming，Less limitation to robot user
5.Light and Handy
High-load robots with load to weight ratios up to 1:2.44
Adoption of a new generation of robot control cabinets 50%
reduction in size and 30% reduction in w eight
6.ESD
Power consumption as low as 200W
No need to replace lubricating oil
