MV Indoor Type Transformers

• Double pole insulated

• Block type design

• Standard: IEC 61869-3, VDE, ANSI, GOST

Application:

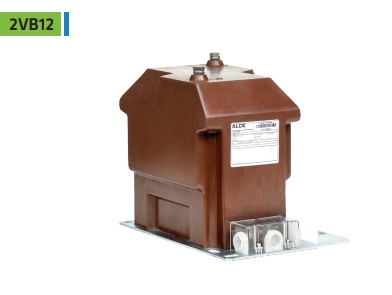

The 2VB12 is a double-pole indoor voltage transformer used in medium voltage systems up to 12 kV. It is designed for phase-to-phase voltage measurement or applications where both poles are insulated from ground. It is ideal for metering, monitoring, and protection functions inside switchgear panels and indoor substations.

Design: Block type, resin-cast, two-pole insulated
Standards Compliance: IEC 61869-3, VDE, ANSI, GOST

Application:
The VK36 is a single-pole, indoor voltage transformer designed for use in medium voltage switchgear systems. It is typically used for voltage metering, monitoring, and protection in systems rated up to 36 kV. The VK36 is ideal for compact installations requiring reliable insulation and precise voltage measurement.

Design: Block type, dry-type, cast resin insulated
Standards Compliance: IEC 61869-3, VDE, ANSI, GOST

Application:
The VB36 is a single-phase, single-pole insulated voltage transformer designed for indoor installation in medium voltage systems up to 36 kV. It is used for voltage measurement, metering, and protective relaying, and is commonly installed in switchgear and indoor substations.

Design: Block type
Standards Compliance: IEC 61869-3, VDE, ANSI, GOST

Application:
The VB24 is an indoor, single-pole insulated voltage transformer designed for use in medium voltage switchgear systems up to 24 kV. It is suitable for metering, protection, and earth fault detection applications.

Design: Block type
Standards Compliance: IEC 61869-3, VDE, ANSI, GOST

• Single pole insulated

• Narrow type design

• Standard: IEC 61869-3, VDE, ANSI, GOST

Application:
The VK12 is a single-phase indoor voltage transformer designed for use in medium voltage switchgear or indoor substations. It is suitable for voltage measurement, metering, and protection functions in 12 kV systems.

Type: Indoor, Single-Pole Voltage Transformer
Rated Voltage Class: 12 kV

• Single pole insulated

• Block type design

• Standard: IEC 61869-3, VDE, ANSI, GOST

• Busbar Type Design

• Standard: IEC 61869-2, VDE, ANSI, GOST

• Busbar Upon Reque

Application:
These models are designed for indoor installation in medium voltage switchgear systems. They are suitable for measuring, metering, and protection purposes in 12 kV to 36 kV systems, depending on model.

Type: Indoor Block Type – Support Mounted

• Narrow type design

• Standard: IEC 61869-2, VDE, ANSI, GOST

• On request with capacitive laye

Ứng dụng: Lắp đặt trong nhà cho các hệ thống điện trung thế, dùng trong tủ điện hoặc trạm biến áp. Thích hợp cho cả mục đích đo lường và bảo vệ.

Kiểu: Dạng khối (Block Type), lắp đỡ (Support Type)

Cấp điện áp định mức: 36 kV

Ứng dụng: Dùng trong các hệ thống điện trung thế, lắp đặt trong nhà, thường được sử dụng trong tủ điện hoặc trạm biến áp trong nhà.

Loại: Kiểu khối, lắp đỡ (Indoor Block Type)

Cấp điện áp định mức: 36 kV

• Narrow type design

• Standard: IEC 61869-2, VDE, ANSI, GOST

• On request with capacitive layer

• Block type design

• Standard: IEC 61869-2, VDE, ANSI, GOST

• On request with capacitive layer

• On request with barrier

• Block type design

• Standard: IEC 61869-2, VDE, ANSI, GOST

• On request with capacitive layer

• On request with barrier
