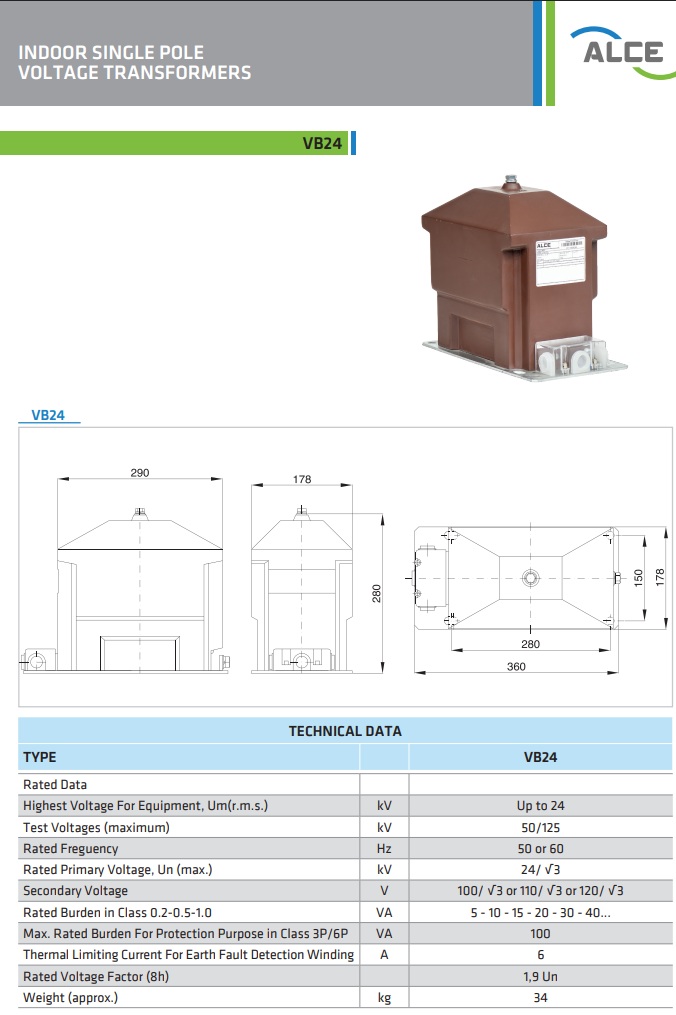

VB24 – Indoor Single Pole Voltage Transformer
| Parameter | Specification |
|---|---|
| Type | VB24 |
| Insulation | Single-pole, indoor |
| Highest Voltage for Equipment (Um) | Up to 24 kV |
| Test Voltage (1 min / lightning impulse) | 50 kV / 125 kV |
| Rated Frequency | 50 or 60 Hz |
| Primary Voltage (Un) | 24 / √3 kV |
| Secondary Voltage | 100 / √3 V, 110 / √3 V, or 120 / √3 V |
| Rated Burden (Class 0.2 – 1.0) | 5 – 10 – 15 – 20 – 30 – 40 VA and higher |
| Max. Burden for Protection (Class 3P / 6P) | 100 VA |
| Thermal Limiting Current (Earth Fault Winding) | 6 A |
| Rated Voltage Factor (8h) | 1.9 × Un |
| Approximate Weight | 34 kg |
