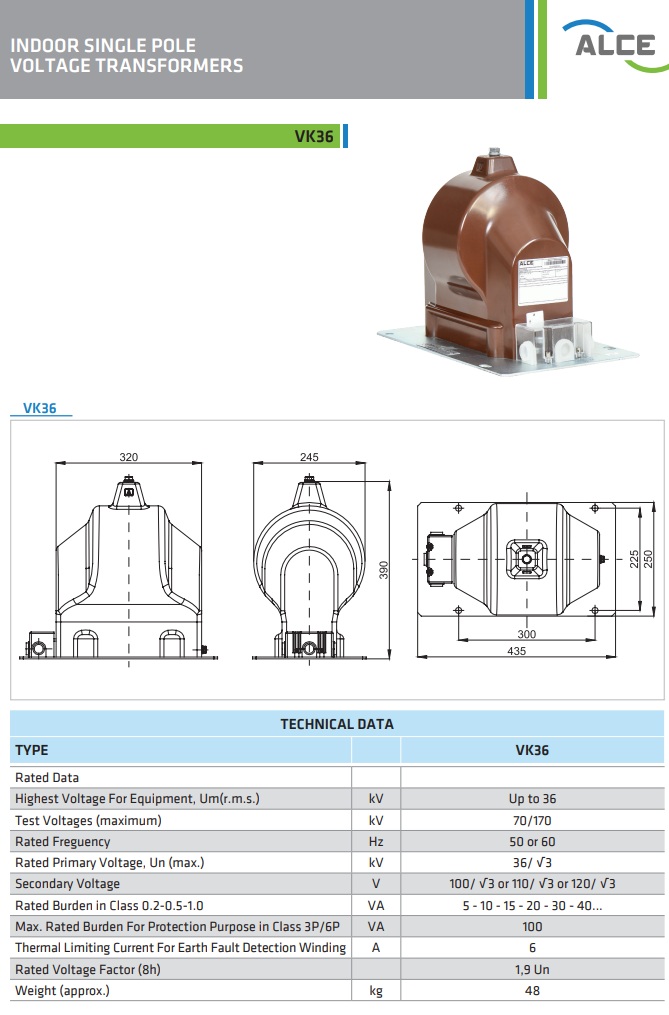

VK36 – Indoor Single Pole Voltage Transformer
echnical Specifications (Typical)| Parameter | Specification |
|---|---|
| Type | VK36 |
| Installation | Indoor, single-pole insulated |
| Highest Voltage for Equipment (Um) | Up to 36 kV |
| Test Voltage (Power Frequency / Impulse) | 70 kV / 170 kV |
| Rated Frequency | 50 or 60 Hz |
| Rated Primary Voltage (Un) | 36 / √3 kV |
| Rated Secondary Voltage | 100 / √3 V, 110 / √3 V, or 120 / √3 V |
| Rated Burden (Class 0.2 – 1.0) | 10 – 20 – 30 – 40 VA |
| Max. Burden for Protection (Class 3P / 6P) | Up to 100 VA |
| Thermal Limiting Current | ~6 A (for earth fault detection winding) |
| Rated Voltage Factor (8h) | 1.9 × Un |
| Cooling / Insulation Type | Dry-type, cast resin |
| Approximate Weight | ~35–45 kg (varies by manufacturer) |
